Parametric 3D modeling for the Pauhu pavilion

Place: Tampere, Country: Finland
Pauhu pavilion
Tampere Architecture Week 2015
Project coordinator: Henri Käpynen
design: Toni Österlund (Geometria), Lisa Voigtländer
Text and images courtesy of Henri Käpynen
Photos © Simo Ulvi and © Toni Österlund

Pauhu temporary wood pavilion Tampere Architecture Week 01

Photo © Toni Österlund

Pauhu, a temporary pavilion for the Tampere Architecture Week

Pauhu pavilion was realized as a voluntary project as a part of Tampere Architecture Week, in Finland, bringing together architecture and design students and professionals in addition to a number of different sponsors.
Tampere Architecture Week is an annual event about architecture and urban planning, intended to add interest and discussion about the built environment.
The theme in 2015 – interaction – aimed to increase the possibilities for interaction between citizens themselves and between architects and citizens.
Functioning as an open stage for free expression and performance, Pauhu pavilion aims to highlight interaction as one of the most crucial subjects in our ever more privatized and secluded cities. The name “Pauhu” refers to the distant roar generated by the Tampere rapids, by the city around the pavilion, as well as by the artists and presenters the pavilion is hosting. The interlace of public, private and communal interests was essential and absolutely crucial in making Pauhu possible.

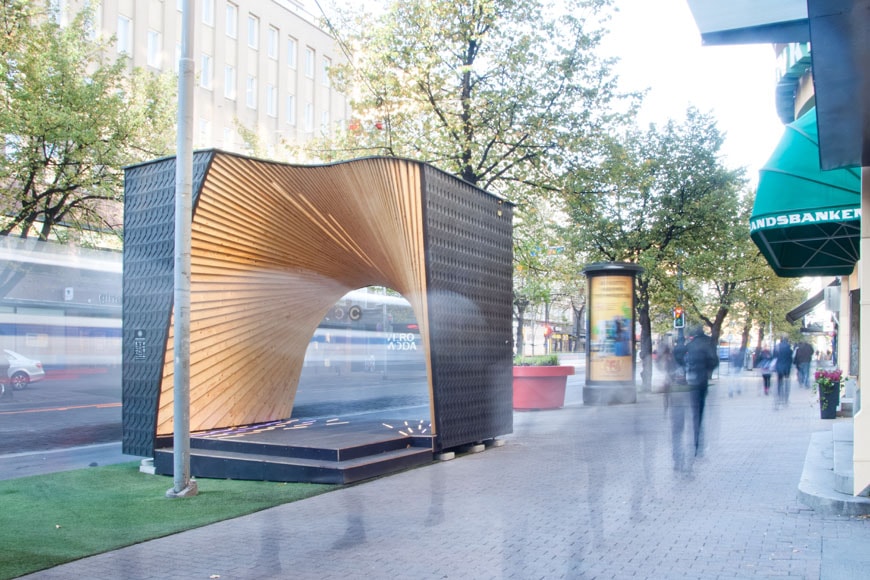

Pauhu temporary wood pavilion Tampere Architecture Week 04

Along with its intended use as an active open-stage for public debates and performances Pauhu aims to promote forward-looking thinking in architecture focusing on the innovative use of wood. The construction process fuses conventional and tested building methods with state-of-art digital design and fabrication processes. The pavilion was designed using algorithm-aided design methods as a detailed and accurate parametric 3D-model, from which all construction information and fabrication data were derived from.

Pauhu temporary wood pavilion Tampere Architecture Week concept

Pauhu temporary wood pavilion Tampere Architecture Week scheme 01

The inner smooth form of the pavilion is inspired by the flowing waves of the rapids, as well as the intricate plywood sculptures by the legendary Finnish sculptor Tapio Wirkkala. The smooth interior is seemingly carved out of a solid block of rough wood, which is emphasized by the contrasting color tones.

Pauhu temporary wood pavilion Tampere Architecture Week 02

The interior is generated as a ruled surface by a rotation of plywood strips along the width of the pavilion, and while it appears to be doubly curved, the strips are all flat, un-bent and rectangular in shape.

Pauhu temporary wood pavilion Tampere Architecture Week 03

The plywood strips are connected to notches on an array of CNC-milled supporting arches. The heights of the individual strips vary according to their overlap, which allows for the optimization of material usage The resulting expressive shape forms an eye-catching frame and a backdrop for the presenter while being a simple structural implementation using a minimal amount of CNC-milling.

Pauhu temporary wood pavilion Tampere Architecture Week 05


Pauhu temporary wood pavilion Tampere Architecture Week detail

The outside of the pavilion is clad with a three-dimensional wood texture. The structured paneling is a new product innovation by Jukola Industries, called Grafwood. The texture invites passers-by to touch and feel the unusual material.

Pauhu temporary wood pavilion Tampere Architecture Week night

Light and shadows on the dark façade change accordingly to the rhythm of the day, and the weather conditions.
The construction of the pavilion took eight days from a group of architecture students, and it was built off-site and brought to the location on a truck. The pavilion is a temporary construction, scheduled to remain in its location until the end of 2016 as part of the city’s project to liven up one of the central streets of Tampere.


Project coordinator: Henri Käpynen
Architectural design: Toni Österlund (Geometria), Lisa Voigtländer
Tampere Architecture Week: Jon Thureson, Tuomo Joensuu, Saana Karala, Henri Käpynen
Lighting Design: Heini Ylijoki (Granlund)
Construction Specialist: Harri Seelbach (Teeri-Kolmio)
Electrics: Antti Pesonen (Kauppahuone Harju)

Audrey Daudon, Andrew Davis, Lauri Heino, Aapo Huotarinen, Juuso Iivonen, Kasmir Jolma, Danuta Kiedrowska, Jenni Kinnunen, Magdalena Klimczak, Adrienne Marxreiter, Leonardo Morais, Petra Moravcová, Mari-Sohvi Miettinen, Crystal Nutsch, Martina Pozarova, Paloma Sánches, Heidi Sumkin, Mikko Toivanen, Ana Trigureiro, Manon Vanel, Lassi Viitanen.
